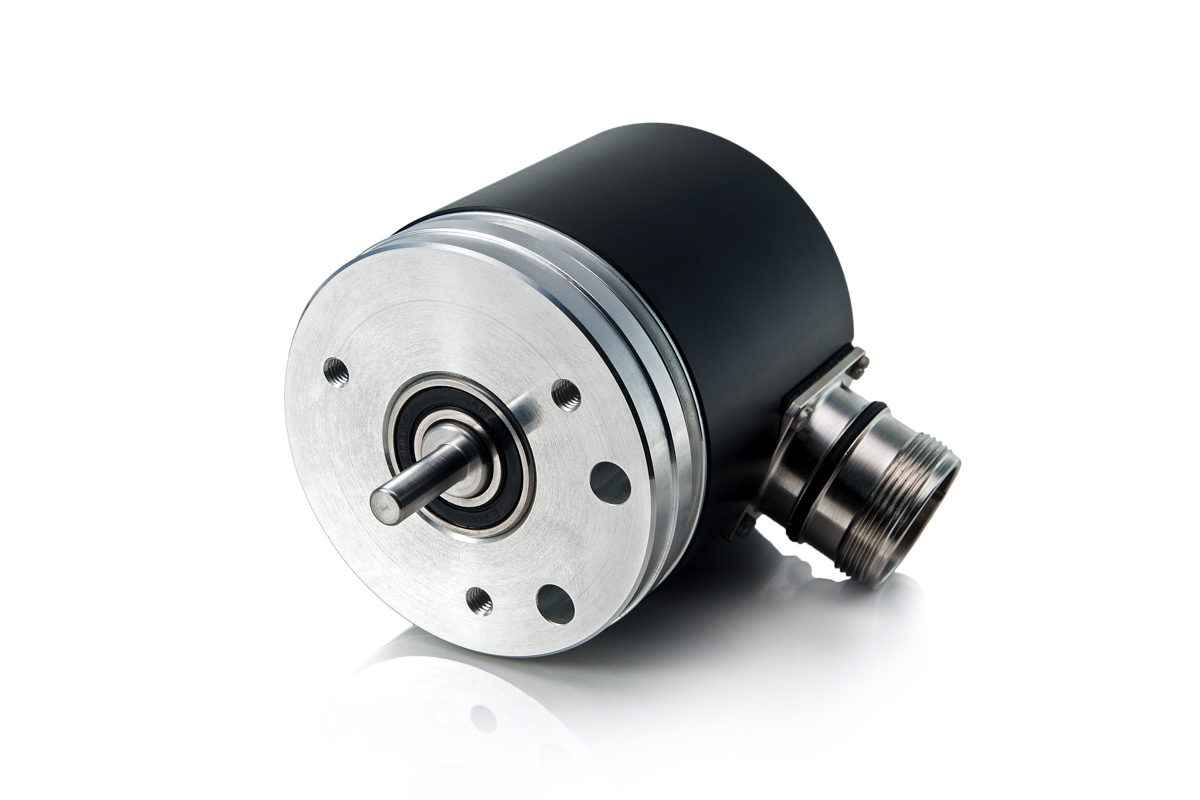

Ø58mm absolute encoder

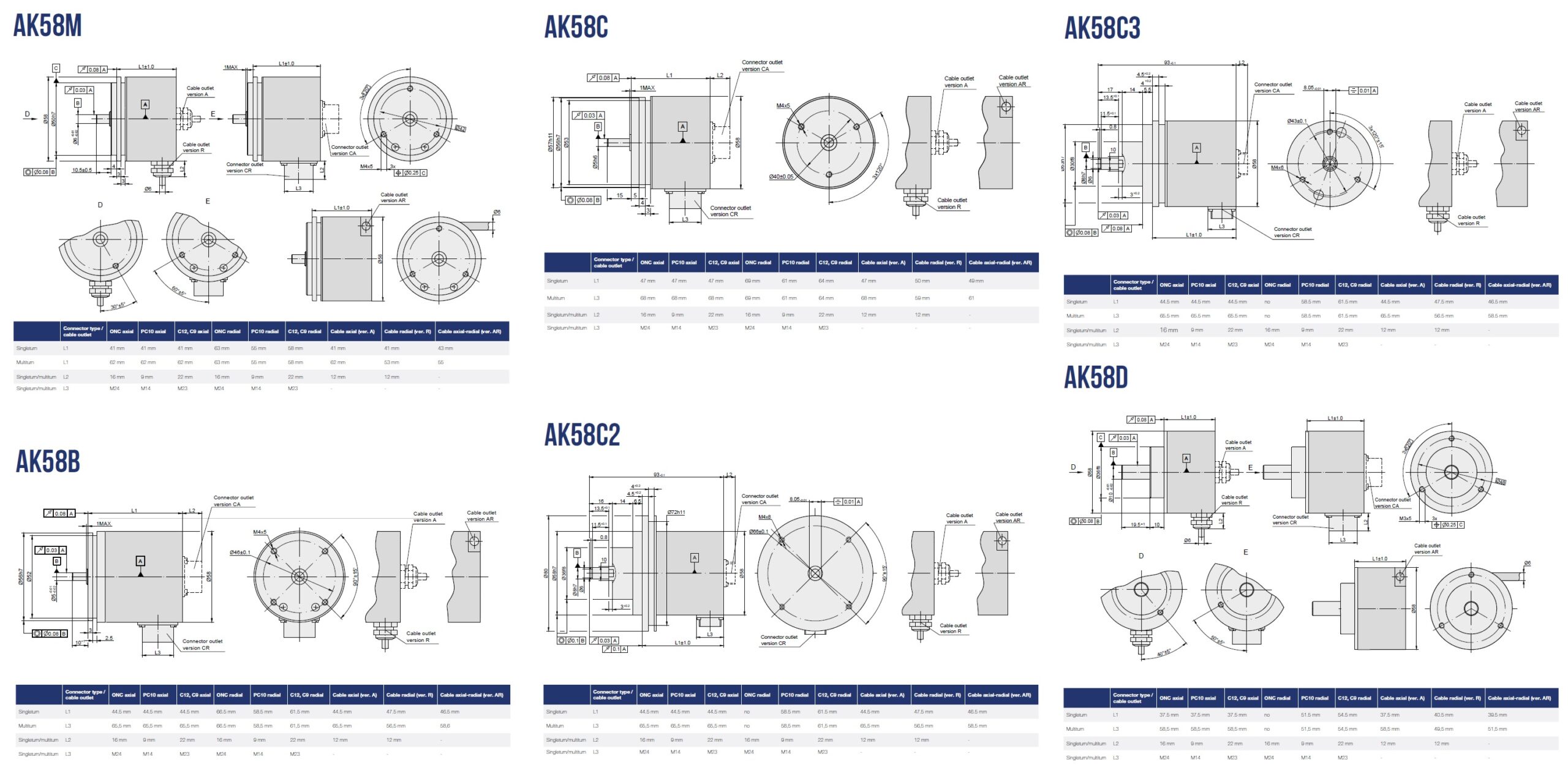

Photoelectric absolute singleturn and multiturn rotary encoder series AK58 is constituted of 6 different models – AK58M, AK58B, AK58C, AK58C2, AK58C3 and AK58D. Encoders use SSI, BiSS serial interfaces and output up to 21 bit singleturn and 24 bit multiturn resolutions through binary or Gray codes.
| Maximum shaft speed | 12000 rpm |
| Maximum shaft load | axial: 10 N radial: 20 N |
| Starting torque at 20°C | < 0.01 Nm |
| Rotor moment of inertia | < 15 gcm² |
| Protection (IEC 529) | IP65 |
| Maximum weight without cable | 0.3 kg |
| Operating temperature | singleturn: -20…+80°C multiturn: -10…+70°C |
| Storage temperature | singleturn: -30…+90°C multiturn: -20…+80°C |
| Maximum humidity (non-condensing) | 98% |
| Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
| Permissible shock (11 ms) | ≤ 1000 m/s² |
| Resolution per revolution for singleturn version | with interface BiSS C – 9…21 bit with interface SSI – 9…21 bit |
| Resolution per revolution for multiturn version | singleturn resolution with BiSS C – 9…21 bit multiturn resolution with BiSS C – 12/16/20/24 bit singleturn resolution with SSI – 9…21 bit multiturn resolution with SSI – 12/16/20/24 bit |
| Output code | Gray, Binary |
| Data interface | Serial SSI, Serial BiSS C |
| Light source | LED |
| Accuracy | ± 1 LSB |
| Supply Voltage | 5 V ± 5 % |
| Maximum supply current | 50 mA |
| Maximum operating frequency | with interface BiSS C: 10 MHz with interface SSI: 4 MHz |
| Cable length (standard) | 1 m |
| Maximum cable length | 25 m |
AK58 – X1 – X2 – X3 – X4/X5 – X6 -X7 -X8 – X9/X10
| Type (X1) | Version (X2) | Output Signal Interface (X3) | Singleturn Number (X4) | Multiturn Number (X5) | Code (X6) | Incremental Signals (X7) | Supply Voltage (X8) | Cable Length and Outlet or Flange Socket on Case Outlet (X9) | Connector Type (X10) |
| M – AK58M B – AK58B C – AK58C C2 – AK58C2 C3 – AK58C3 D – AK58D |
ST – singleturn MT – multiturn |
S – SSI B – BiSS C |
B9 – 9 B10 – 10 B11 – 11 B12 – 12 … B20 – 20 |
M0 – 0 (for single turn version) M9 – 9 M10 – 10 M11 – 11 … M40 |
B – Binary G – Gray |
V – 1Vpp* N – no incremental signal *only for singleturn version |
05V – +5V 30V – +(10 to 30V) |
A01 – 1m (A-axial cable) … R01 – 1m (R-radial cable) … AR01 – 1m (AR-universal cable outlet) … CA – flange socket axial CR – flange socket radial |
W – without connector B12 – round, 12 pins C12 – round, 12 pins D9 – flat, 9 pins D15 – flat, 15 pins RS10 – round, 10 pins ONC – round, 10 pins |
ORDER EXAMPLES:
