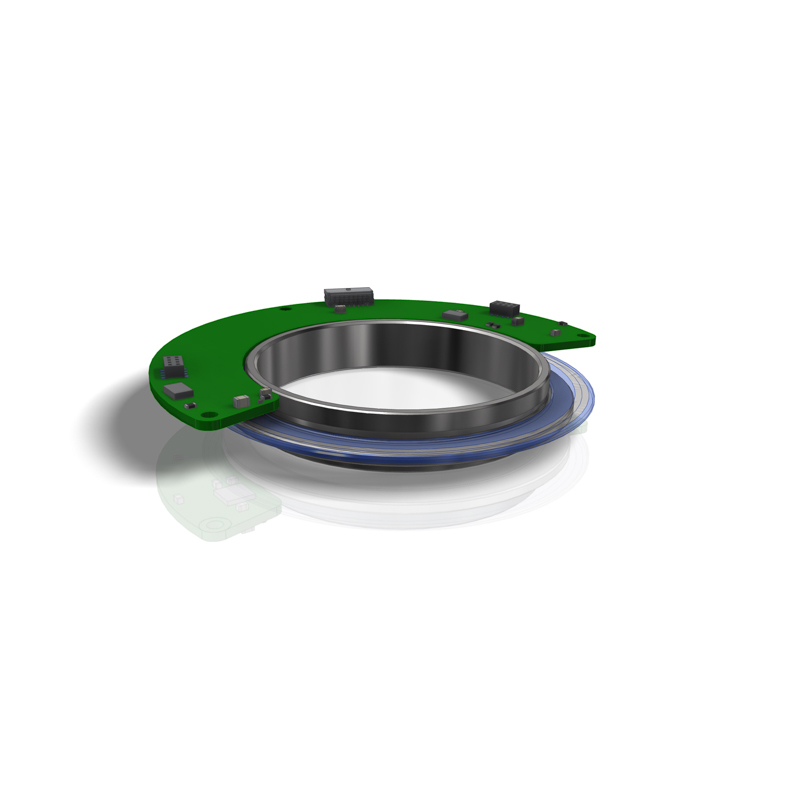

Ø70mm absolute encoder
The AN is a high-resolution, singleturn absolute encoder with a 22 Bit BiSS C interface. The encoder consists of several optical reflectance sensors arranged at an angle of 180 degrees to each other. This allows to eliminate mechanical errors in the application, such as the runout of the measured shaft, by using subsequent electronics.
| Maximum shaft speed | 4000 rpm |
| Permissible axial motion of measured shaft | 0.03 mm |
| Permissible radial runout of measured shaft | 0.03 mm |
| Rotor moment of inertia | < 30×10-6 gcm² |
| Protection (IEC 529) | IP00 |
| Maximum weight without cable | 0.05 kg |
| Operating temperature | -40…+100°C |
| Storage temperature | -40…+100°C |
| Maximum humidity (non-condensing) | 98% |
| Permissible vibration (55 to 2000 Hz) | ≤ 100 m/s² |
| Permissible shock (11 ms) | ≤ 200 m/s² |
| Resolution | 22 bit |
| Output code | Binary |
| Data interface | Serial BiSS C |
| Accuracy | ≤ ± 100″ |
| Supply voltage | 5 V ± 5 % |
| Supply current | 80 – 220 mA |
| Cutoff frequency | < 240 kHz |
| Start up time | 13 ms |
| Scan ratio of T | 40 – 60% |
| Time lag | 80 ns |
| Monoflop time | timeout + T/2 us |
| Rise and fall time | 4 – 15 ns |
| Analog signals | ~ 1Vpp (1024 PPR) |
| Amplitude output voltage | 0.6 – 1.2 VDC |
| Output current | 22 mA |
AN – X1 – X2 – X3
| Adjustment (X1) | Adjustment (X2) | Adjustment (X3) |
| This is just an example of a specific tailor-made encoder kit, but there can be numerous variations with different interfaces, mechanical, electrical adjustments, etc. The client would have to cover the non-recurring engineering (NRE) cost for designing and manufacturing the encoder kit depending on the complexity of adjustments needed for the application. | ||
Note: Please consult beforehand to confirm specific adjustments and capabilities.
