Digital readout unit

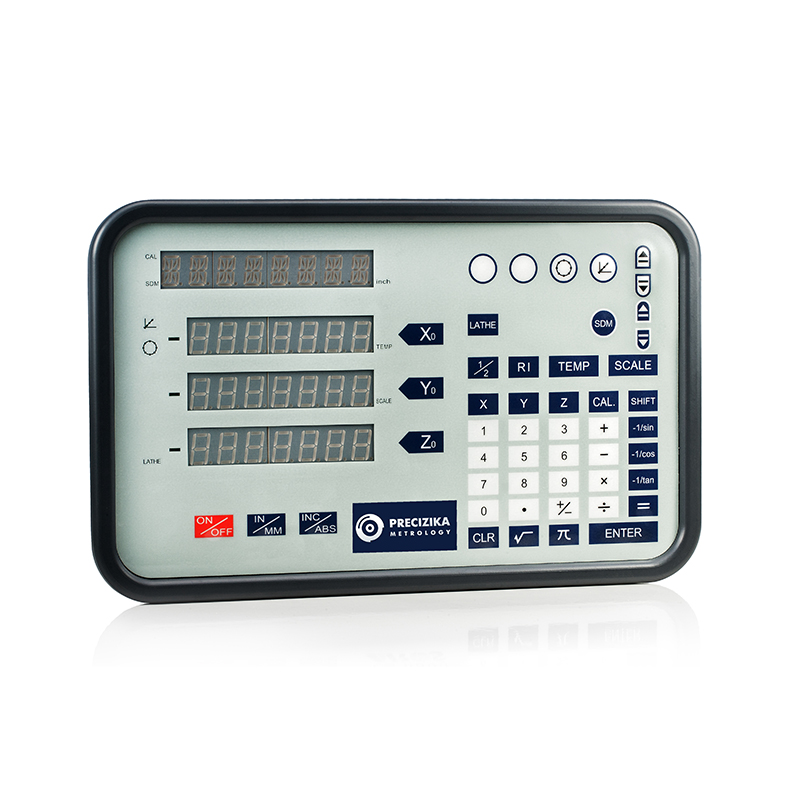

Advanced Two and Three Axis Readout Device (CS5500-2, CS5500-3)
Features:
Measuring in millimeters or inches (inch/mm)
Measuring system calibration in relation to the reference point (REF)
Radius calculation (1/2)
Measuring in relative or absolute coordinate system (INC/ABS)
Entering or setting zero values for the selected axis
Linear movement measurement (by means of linear encoders)
Rotary movement measurement (by means of rotary encoders)
Memory for the last position after switch off
Entering shrinkage rate
Setting 999 datum systems in SMD mode
Movement direction indication
Machining modes:
– holes drilling along the circle
– holes drilling along an oblique line
Error correction: linear compensation
Inside calculator
Serial interface RS232
| Input standard: | RS 422 |
| Power supply for encoders: | +5 V DC |
| Resolution of linear encoders: | 0.1; 0.2; 0.5; 1; 2; 5; 10; 20; 50 μm |
| Resolution of rotary encoder: | 1°- 0.0001° |
| LED green display, 7 digit and sign: | 14 mm height |
| Maximum input signals frequency: | 500 кHz |
| Power supply: | AC8 5-V ~ 230 V |
| Power consumption: | 5 W |
| Overall dimensions: | 295 x 182 x 30.5 mm |
| Weight: | 2.6 kg |
| Operation temperature range: | 0°C -+50°C |
CS – X1 – X2
| Digital Readout Device (X1) | Number of Axis (X2) |
| 3000 – two or three axis | 2 – two axis 3 – three axis |
